301-500 kW EPA Generators
-
350 kW Triton Diesel Generator TP-P350-T3 EPA CertifiedPowered by Perkins 2206D-E13TAG2
Emissions: Tier 3 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 438 kVA / 350 kW
Prime Power Rating: 400 kVA / 320 kW
Generator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure -
350 kW Triton Diesel Generator TP-P350-T3-UL Tier 3 – UL ListedPowered by Perkins 2206D-E13TAG2
Emissions: Tier 3 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 438 kVA / 350 kW
Prime Power Rating: 394 kVA / 315 kW
Leroy Somer AlternatorGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Controller Data Sheet
Product Brochure -
350 kW Triton Natural Gas Generator TP-NG350-UL EPA – UL ListedPowered by PSI Engine 14.6L HO
EPA Certified & UL Listed
60 Hz Power Rating at 3 Phase
Standby Power Rating: 437.5 kVA / 350 kW
Prime Power Rating: 394 kVA / 315 kWGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure -
400 kW Triton Diesel Generator TP-P400-T3 EPA Certified
Powered by Perkins 2206D-E13TAG3
Emissions: Tier 3 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 500 kVA / 400 kW
Prime Power Rating: 450 kVA / 360 kWGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure -
400 kW Triton Diesel Generator TP-P400-T3-UL Tier 3 – UL Listed
Powered by Perkins 2206D-E13TAG3
Emissions: Tier 3 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 506 kVA / 400 kW
Prime Power Rating: 456 kVA / 365 kW
Leroy Somer AlternatorGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Controller Data Sheet
Product Brochure -

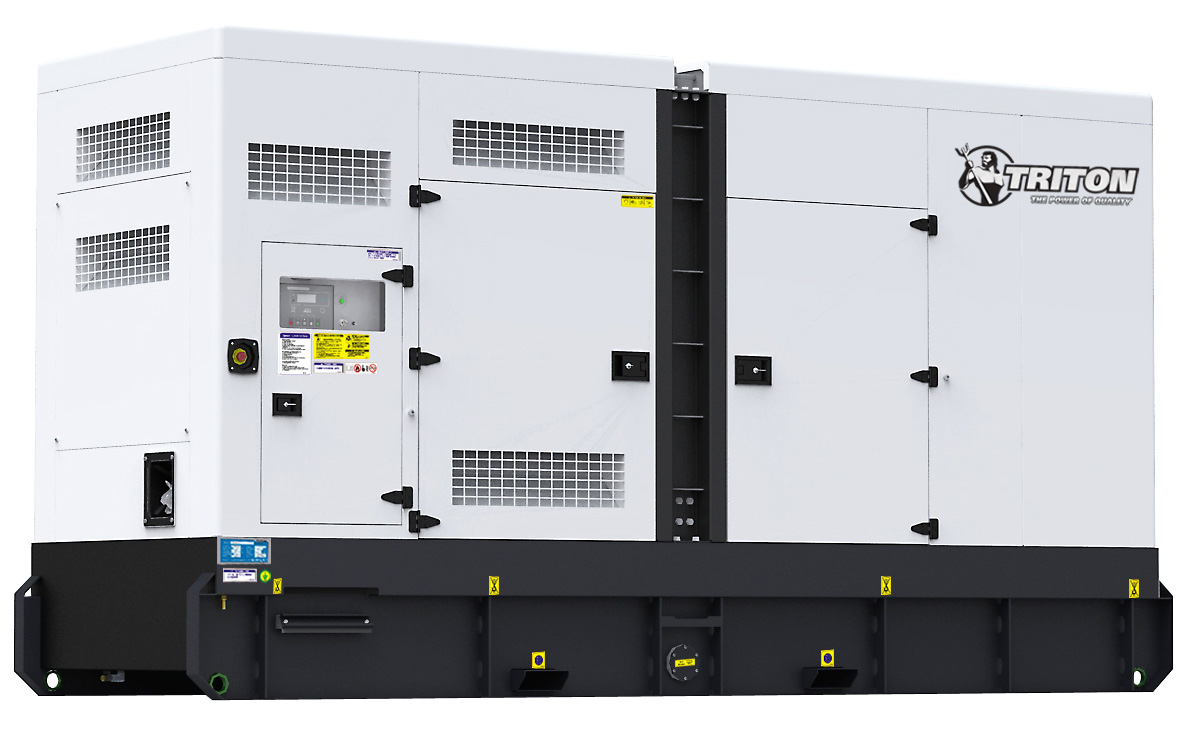

450 kW Triton Diesel Generator TP-P450-T3 EPA Certified
Powered by Perkins 2506D-E15TAG1
Emissions: Tier 3 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 565 kVA / 450 kW
Prime Power Rating: 513 kVA / 410 kWGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure -
450 kW Triton Natural Gas Generator TP-NG450-UL EPA – UL Listed
Powered by PSI Engine 21.9L
EPA Certified & UL Listed
60 Hz Power Rating at 3 Phase
Standby Power Rating: 562.5 kVA / 450 kW
Prime Power Rating: 506.25 kVA / 405 kWGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure -
500 kW Triton Diesel Generator TP-P500-T2 EPA Certified
Powered by Perkins 2506C-E15TAG3L
Emissions: Tier 2 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 625 kVA / 500 kW
Prime Power Rating: 569 kVA / 455 kWGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure -

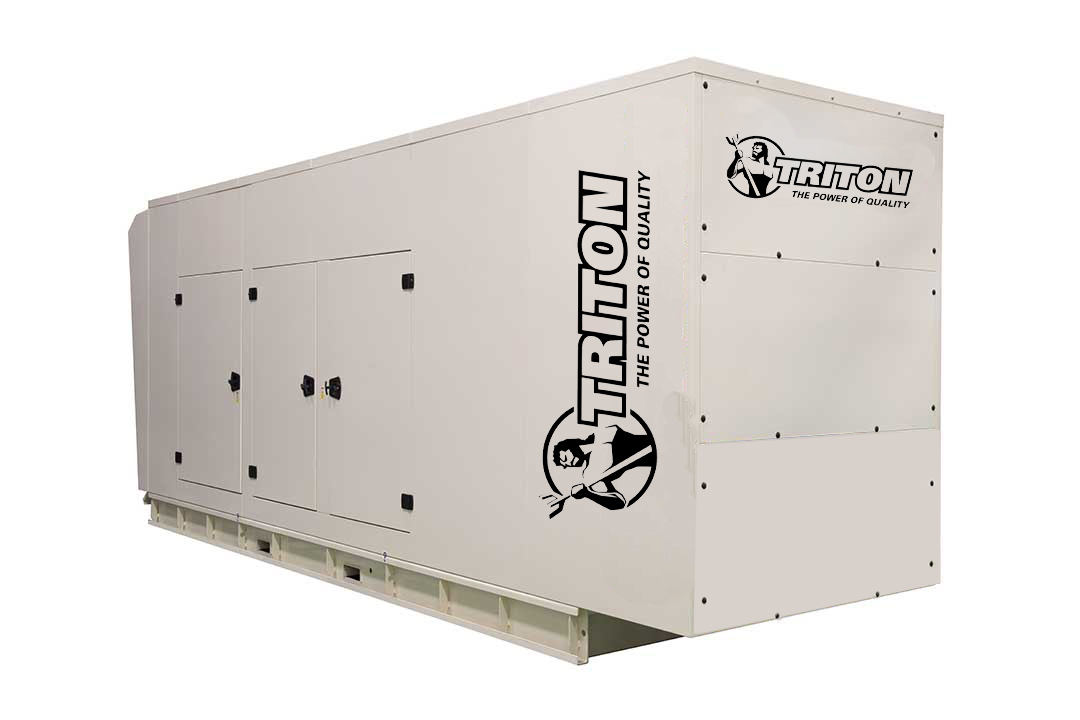

500 kW Triton Diesel Generator TP-P500-T3-UL Tier 3 – UL Listed
Powered by Perkins 2506C-E15TAG3
Emissions: Tier 3 EPA Certified Emergency Stationary Applications
60 Hz Power Rating at 3 Phase
Standby Power Rating: 625 kVA / 500 kW
Prime Power Rating: 569 kVA / 455 kW
Leroy Somer AlternatorGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Controller Data Sheet
Product Brochure -
500 kW Triton Natural Gas Generator TP-NG500-UL EPA – UL Listed
Powered by PSI Engine 21.9L HO
EPA Certified & UL Listed
60 Hz Power Rating at 3 Phase
Standby Power Rating: 625 kVA / 500 kW
Prime Power Rating: 562.5 kVA / 450 kWGenerator Set Specifications
Engine Data Sheet
Alternator Specifications
Product Brochure
Generator Set Specifications
